About
Automatic enamel rater measures the porosity of aerosol cans' inner coating and is fully compliant with FEA 651 standards.

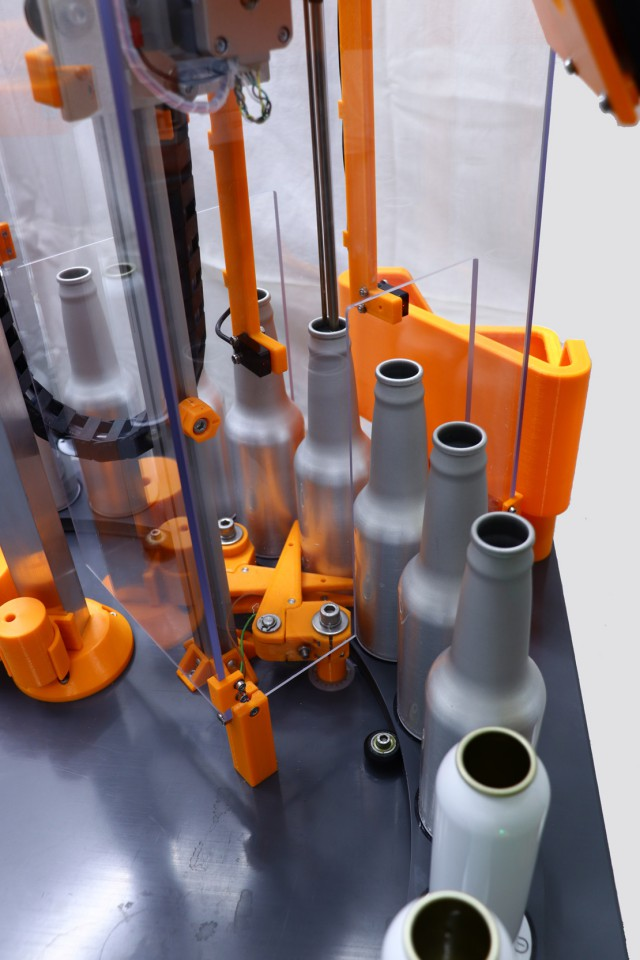

It features a universal measuring position, enabling accurate measurements for various can shapes.
Characteristics
- Set-up Options:
- Freestanding – the automatic enamel rater can send data directly to your information system
- Integrated with our MASA (Measuring and Statistic Application) – data are processed by MASA MES (Manufacturing Execution System) developed by our company
- The process is automated to enhance efficiency and accuracy
- Measure up to 27 cans per cycle at a speed of 2 cans per minute
- Machine-operator communication is provided by our proprietary Unimeter application (used to set measurement parameters, visualize process)
| Can parameters [mm] |
| MAX |
Body diameter - 65 |
Height - 250* |
| MIN |
Throat diameter - 19 |
Height - 58 |
*possible enlargement
Log in, set the measurement position, and the automatic enamel rater does the rest.
